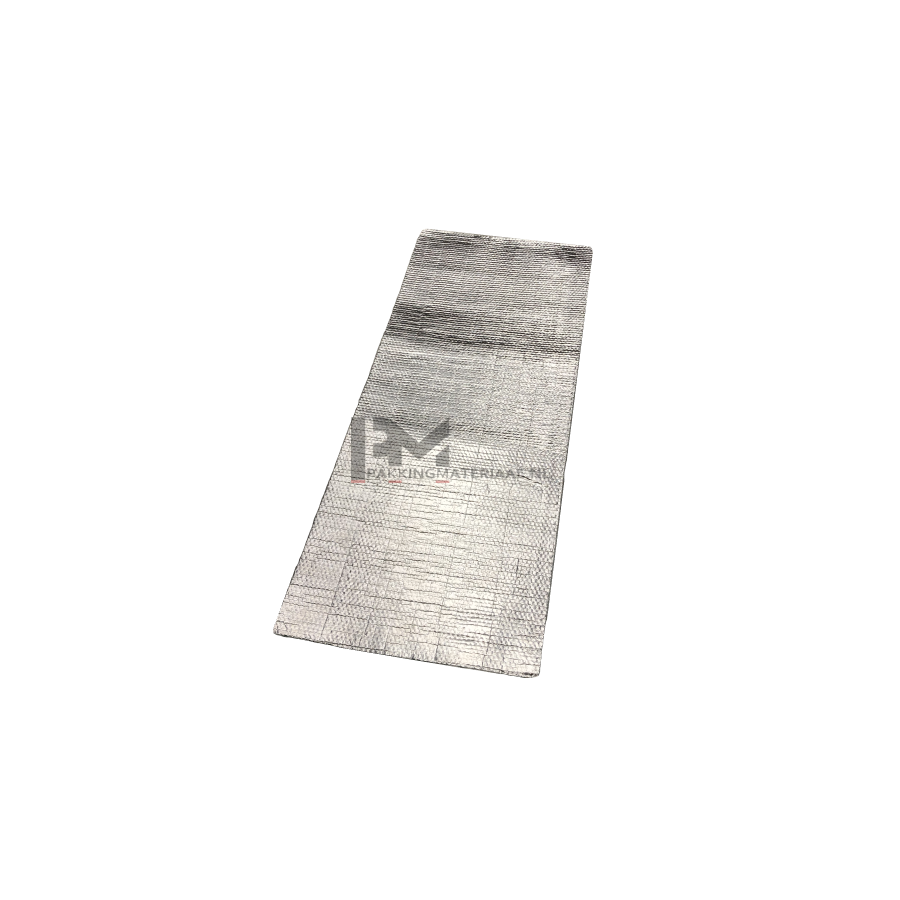

Self-adhesive heat shield (HT), thickness 1.60 mm, sheet dimensions 195 x 475 mm
Beskrivning
Self-adhesive heat shield, thickness 1.60 mm, sheet dimensions 195 x 475 mm
Ideal for cutting yourself. These sheets of self-adhesive heat shield are available in various thicknesses and dimensions so that the correct size is always available.
- Easy to cut
- Asbestos free
- Resistant up to ± 500 ° Celsius (foil side)
- Resistant up to ± 175 ° Celsius (self-adhesive side)
- Density: 1000 grams / meter²
Detailed description:
Heat shield made of type 'E' glass fibers (9 µm fibers) with an aluminum sheet on one side, and an adhesive side with high tack and thermal resistance on the other side (HT refers to the quality of the adhesive)
The adhesive of the self-adhesive side can withstand temperatures above + 180ºC, while the glass fiber side can withstand + 500ºC constant and short periods of + 550ºC.
Adhesive strength on stainless steel:
16 N / 25 mm
Adhesive strength on plastics PC / PVC / PMMA / PET / PP:
12/16/15/11 N / 20 mm
Good mechanical resistance and very good adaptability.
Good resistance to:
UV radiation, acids (except phosphoric acid and hydrofluoric acid)
Application:
extremely suitable in situations where thermal insulation and / or thermal protection of objects against radiant heat is required. (HT) indicates the superior quality of the adhesive, making this type of heat shield particularly suitable for the automotive industry.
This material belongs to the group of non-combustible materials according to DIN 4102.
Ideal for cutting yourself. These sheets of self-adhesive heat shield are available in various thicknesses and dimensions so that the correct size is always available.
- Easy to cut
- Asbestos free
- Resistant up to ± 500 ° Celsius (foil side)
- Resistant up to ± 175 ° Celsius (self-adhesive side)
- Density: 1000 grams / meter²
Detailed description:
Heat shield made of type 'E' glass fibers (9 µm fibers) with an aluminum sheet on one side, and an adhesive side with high tack and thermal resistance on the other side (HT refers to the quality of the adhesive)
The adhesive of the self-adhesive side can withstand temperatures above + 180ºC, while the glass fiber side can withstand + 500ºC constant and short periods of + 550ºC.
Adhesive strength on stainless steel:
16 N / 25 mm
Adhesive strength on plastics PC / PVC / PMMA / PET / PP:
12/16/15/11 N / 20 mm
Good mechanical resistance and very good adaptability.
Good resistance to:
UV radiation, acids (except phosphoric acid and hydrofluoric acid)
Application:
extremely suitable in situations where thermal insulation and / or thermal protection of objects against radiant heat is required. (HT) indicates the superior quality of the adhesive, making this type of heat shield particularly suitable for the automotive industry.
This material belongs to the group of non-combustible materials according to DIN 4102.
Specifikationer
| Height (mm) | 475 |
| Width (mm) | 195 |
| Thickness (mm) | 1,60 |
| Oil resistant | No |
| Fuel resistant | No |
| Easy cut | Yes |
| Material | Tefibral 1000 HT |
| Max temp (°C) | 550 |
| Max continuous temp (°C) | 500 |
| Fire rating | M0 |
| Max temp (°C) HT adhesive | 175 |
| Density (g/m²) | 1.200 ± 40 |
| Tensile strength | 2200 N / 50 mm |
Ytterligare produktinformation
